| Model |
BZ-2800 |
| Max.size(L + W) × 2 |
2800mm |
| Min.size(L + W) × 2 |
340mm |
| Max.size(W + H)×2 |
1515mm |
| Min.size(W + H)×2 |
260mm |
| High of feeder |
1000mm |
| Power |
4kw |
| Machine length |
5300mm |
| Machine weight |
2150kg |
| Machine speed |
60m/min |
Brief introduction：

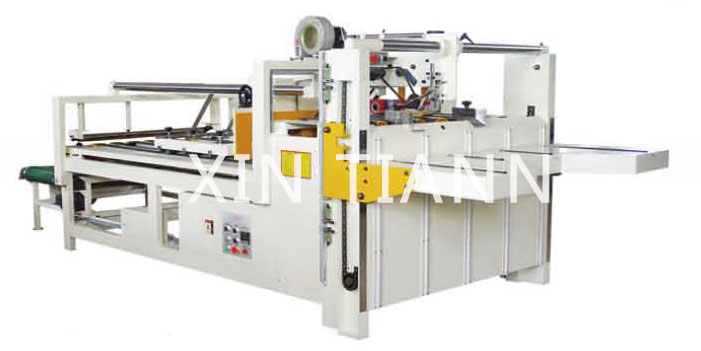

1.BZ2800 Type Semi-auto gluer compose of main form and two small conveyer.
2.Main form including: Form, up and down working table. Forepart feeding section, forepart proofread section, middle Transportation section, middle press section, side carton delivery section, electric control system. |
