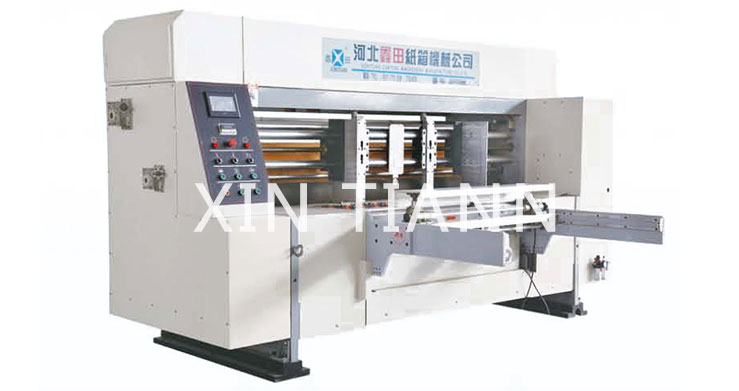

| XinTian XT-M Series Die-Cutter |
Main Technical Parameter：
| SERIAL |
WYAZS NAME |
UNIT |
WYAZS |
| 1220×1800/2200（Φ420） |
1400×1800/2200（Φ480） |
| 1 |
Inboard width |
mm |
2200 |
2600 |
2200 |
2600 |
| 2 |
Max.cover age size |
mm |
1270×2000 |
1270×2400 |
1400×2000 |
1470×2400 |
| 3 |
Effective die cutting area |
mm |
1200×1800 |
1200×2200 |
1400×1800 |
1400×2200 |
| 4 |
Complete machine baffle thickness |
mm |
50 |
50 |
50 |
50 |
| 5 |
Max. speed |
Pieces/min |
150 |
150 |
140 |
140 |
| 6 |
Die cutter precision |
mm |
±1.5 |
±1.5 |
±1.5 |
±1.5 |
| 7 |
Height of die-cutter |
mm |
25.4 |
25.4 |
25.4 |
25.4 |
●This machine is the exclusive equipment ior die cutting and molding, suitable for the manufacturing oi colorful cartons, boxes and other package products of abnormal shape.
●It adopts the double roller pressing and urethane soft template, die cutting speed difference servo make up the linear velocity automatically, completing the paperboard and the siding, slotting, punching, creasing and folding oi the corrugated paper oi medium and small thickness once.
●It adopts the vacuum absorption to supplement the paper feeding; the main machine adjusts the speed by frequency control and the die cutting phase by electro-motion. It is featured with high cutting precision, high speed and convenient operation.
●Option kick Feeding or Lead edge feeding.
Technical Instruction of the Equipment:
●The die cutter phase is controlled by computer and electric digit with 360°adjustment.
●Uniilair glue die cutting cushion roller servo traces simultaneously, when the restored roller is input inside the servo computer system, it will calculate accurately and automatically and follow the print speed to ensure the velocity oi blade line the same as the cushion roller and make the formation oi the die cutting beautiful and same in size. No matter how the diameter oi the cushion changes, the die cutting plate will not be damaged. The upper and lower roller oi the die cutting adopts the design oi different size, the servo system ensures the automatic deviation of the cushion and cutting die for every circle, which greatly lengthen the service life oi the cushion; in addition, the renovated cushion could be used for many times and greatly reduce the use cost.
●The cushion roller mechanical, horizontal and facility from + 30mm to -30mm could raise the service life of the cushion oi the die-cutting.
●Le1t and right baffle and back baffle position are controlled by electric digit; option the side baffle is equipped with pneumatic trimming facilities.
●Consecutive or skip paper feed, infrared electrophonic counter, brush dust removal mechanism.
●All the electric parts was used international famous brand and host frequency conversion control, 30% electricity saving.
|
|   |
|
|
|
