| Model |
Unit |
BZJ-1300S |
BZJ-1450S |
BZJ-1600S |
| Maximum size |
mm |
1300 100 |
1450 100 |
1600 100 |
| Minimum size |
mm |
350 50 |
350 50 |
350 50 |
| Laminate precision |
mm |
≤±1.5 |
≤±1.5 |
≤±1.5 |
| Speed |
m/min |
100 |
100 |
100 |
| Total power |
kw |
12 |
12 |
12 |
| Length |
m |
12.5 15.6 |
12.5 30. 6 |
12.5 45.6 |
| Total weight |
T |
6.8 |
7.2 |
8.0 |
Main chracteristics:

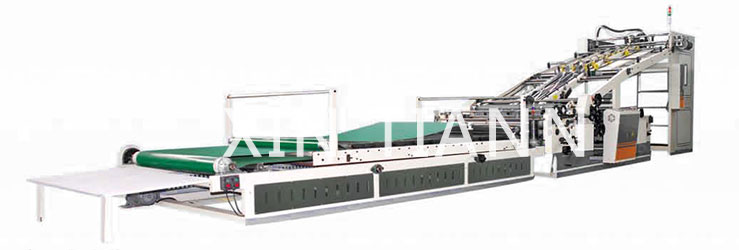

The fourth-generation products of back push style,the machine have advantage oi easy operation, convenient maintenance,high speed,lownoise,and high accuracy,It will help uto gain the power in the market.
Imported parts and electircal components from JAPAN and Germany,gurantee the quality and use life.
BZJ adopt the high-tech control system,supply the glue by automaticly when the machine working,match with the recyclable gluing system,glue quantity can a just according to the different of the paperboard, it make the glue envenly on the paperboard, this system ensures glue saving with better lamination quality.
The machine use for laminating cardboard with corrugated board,itensureA\B\C\D\E\F\N flute,single,double,three ply corrugaed paperboard can working when the machine in high speed running,itmake the board smoothly and high accuracy.
|
